Aluminium Pergolas and Louvre Systems Saudi Arabia — Engineered Shade Solutions
Aluminium Pergolas and Louvre Systems in Saudi Arabia: Aluminium pergolas and louvre systems are the premium choice for outdoor shading in hospitality, residential and commercial settings where the shade structure is as much a design element as a functional one. Motorised louvre pergolas — with adjustable aluminium blades that rotate from fully open to fully closed — allow the user to precisely control light, shade and ventilation throughout the day. When closed, the blades form a continuous waterproof roof. When open, the space beneath becomes an airy, light-filled outdoor room. Shades Systems supplies and installs aluminium pergola systems across Saudi Arabia from our Jeddah base.

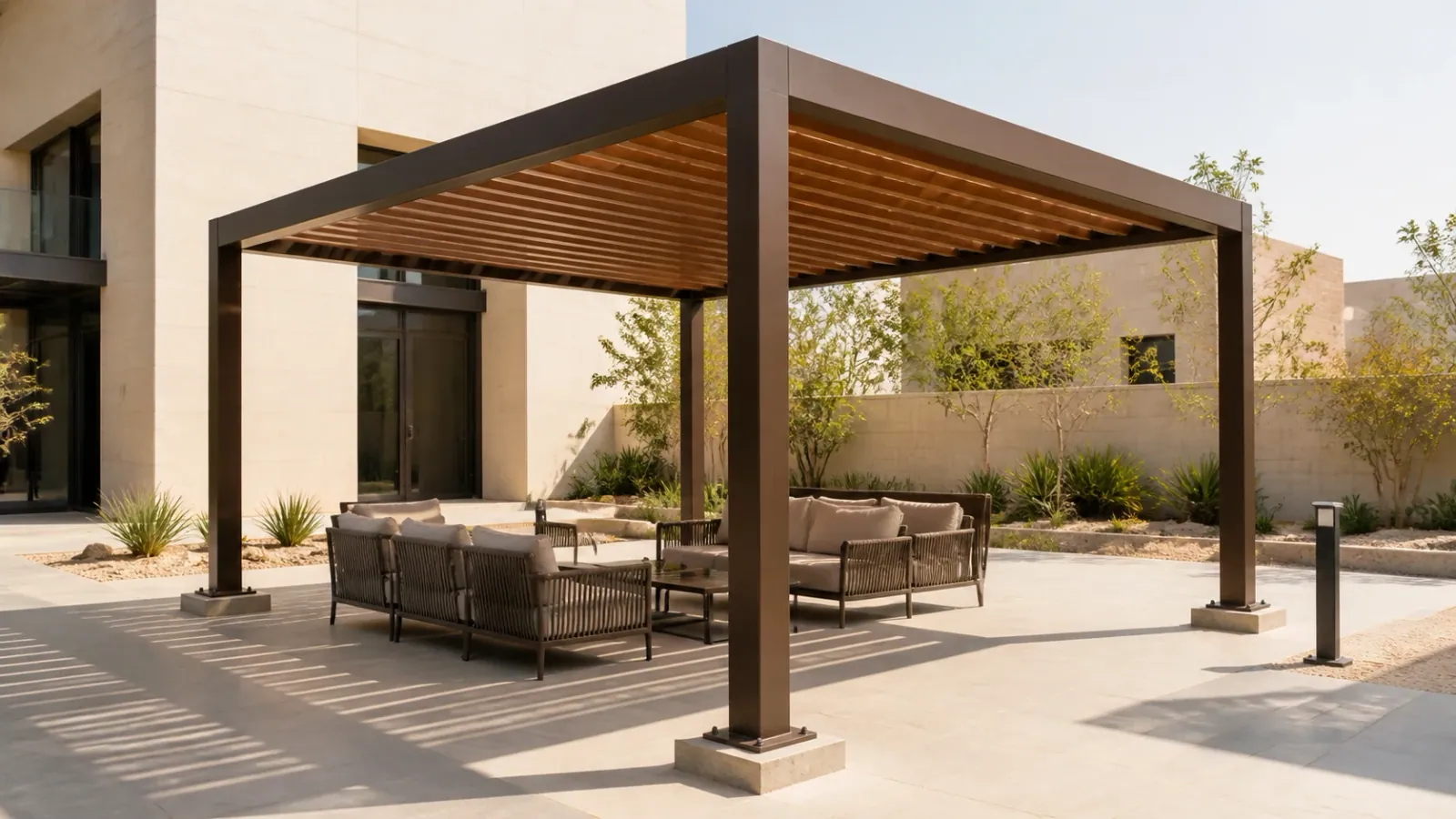

Service image gallery
At a glance — Premium aluminium outdoor structures with fixed roofs or motorised rotating louvres that control sun, airflow and rain exposure.
Recommendation — Choose motorised louvres for hospitality and premium spaces needing adjustable conditions; use fixed pergolas where one shade condition is sufficient.
Warranty — A 10-year structural warranty is available on approved pergola systems; motors, controls and accessories follow their component warranties.
Company proof — Founded in 2006 · 3,000+ projects · 2M+ m² shaded · ISO 9001, 14001 and 45001.
Best for — For hotels, resorts, restaurants, villas, compounds, rooftop lounges and commercial hospitality terraces.
The motorised louvre pergola is built around an extruded aluminium structural system — posts, beams and louvre blade cassettes — engineered for the static loads of wind and self-weight as well as the dynamic loads generated by blade movement. Blade rotation is driven by tubular electric motors concealed within the cassette housing, with each blade rotating through 0°–135° independently or in groups. Blade widths are typically 200 mm, with standard span modules of 3–6 m between posts. For larger terraces, multiple modules are connected in rows or grids, with internal drainage channels within the beams directing rainwater to the columns and then to below-grade drains — keeping the entire structure waterproof in the closed position with no visible guttering.
Smart control is integral to the modern louvre pergola specification. A wall-mounted control panel or a smartphone app allows the user to adjust blade angle, operate integrated LED lighting strips (typically concealed in the beam housing for indirect ambient light), and control optional side elements — motorised glass walls, fabric curtains, louvre privacy screens or insect screens. Weather station integration connects rain, wind and sunlight sensors to the building management system (BMS) or standalone controller: on detecting rain above a set threshold, blades automatically close; on detecting wind above the system's rated speed, blades rotate to the feathered position to reduce load.
The material and finish quality of louvre pergola systems is the critical differentiator between hospitality-grade and residential products. Our aluminium extrusions are manufactured from 6063-T5 or 6061-T6 alloy, providing the structural stiffness required for the longer blade spans and post heights used in hotel and resort applications. Surface finishing options include PVDF powder coat in any RAL colour (preferred for coastal environments due to its exceptional UV and salt-air resistance) and anodising in natural silver, champagne or bronze tones. Wood-look WPC (wood-plastic composite) cladding applied over the aluminium structural frame provides the warmth of timber without the maintenance requirements, and is a popular choice for villa gardens and resort bungalow terraces.
Fixed pergola structures — where the roof infill is permanent rather than adjustable — use aluminium or steel frames with a wide range of roof infill options: PVC/PVDF coated fabric panels for waterproof coverage, polycarbonate sheet for translucent coverage with rain protection, HDPE shade cloth for breathable UV shade, or laser cut aluminium panels for decorative shade screens. Fixed pergolas are typically more cost-effective than louvre systems and are appropriate for applications where a single shade condition — permanently shaded, permanently open — meets the project requirement. Both motorised louvre and fixed pergola systems are available with LED lighting integration, side curtain tracks and custom colour matching.
