Tensile Structures in Saudi Arabia: Tensile structures are pre-stressed architectural fabric systems — PVC-coated polyester and PVDF-coated membranes stretched under controlled tension over structural steel frames to create dramatic, curvature-defined forms. Unlike conventional roofs, tensile structures carry load through tension rather than compression, enabling extraordinary clear spans, flowing geometric forms and remarkable lightness. Shades Systems designs, engineers and fabricates tensile fabric structures for Saudi Arabia's most demanding architectural and infrastructure projects, from our Jeddah facility.

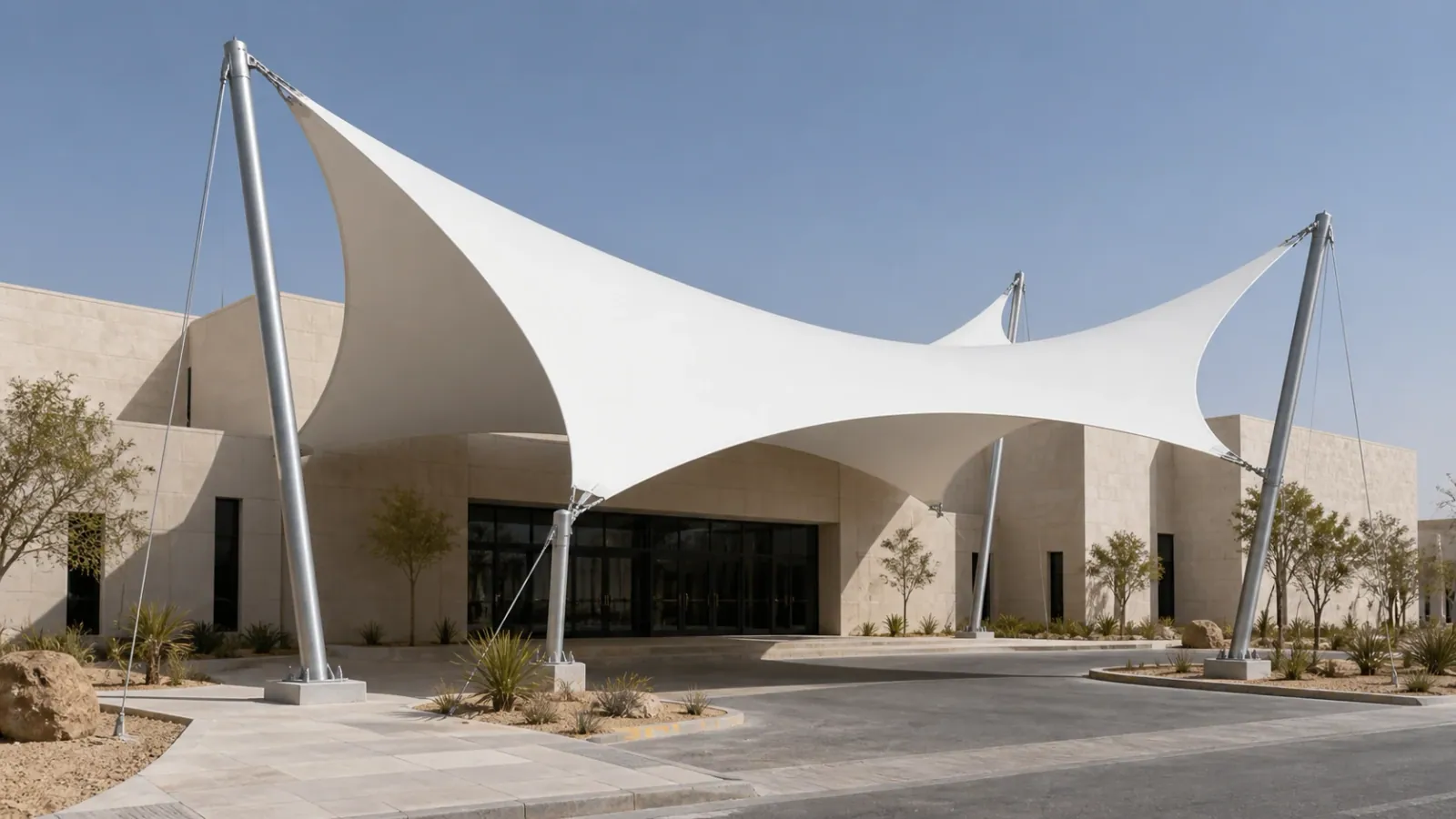

Service image gallery
At a glance — Pre-stressed architectural membranes that carry load through tension over structural steel, enabling sculptural forms and large clear spans.
Recommendation — PVC/PVDF membrane is our standard recommendation for permanent Saudi tensile architecture requiring waterproofing and controlled geometry.
Warranty — Our recommended PVC/PVDF tensile systems carry a 10-year warranty and typically perform beyond it with basic maintenance.
Company proof — Founded in 2006 · 3,000+ projects · 2M+ m² shaded · ISO 9001, 14001 and 45001.
Best for — For architects, developers and public-sector teams delivering airports, hotels, stadiums, plazas, malls and cultural venues.
The defining architectural characteristic of tensile structures is their ability to create large, column-free covered spaces with a visual elegance that conventional materials cannot replicate. Double-curved anticlastic or synclastic surfaces — saddle shapes, cones, arches, wave forms — emerge naturally from the physics of tensioned fabric, giving each structure a unique, sculptural presence. These forms are used for airport terminal entrance canopies, sports stadium concourse roofs, hotel lobby entrance structures, public plaza shade canopies, commercial mall entrances and cultural venue covers across Saudi Arabia.
Our recommended system for many permanent tensile structures is an approved PVC/PVDF-coated polyester membrane backed by our 10-year system warranty. Selected PVDF topcoats can reduce dirt adhesion and improve UV and colour retention, but performance, maintenance and service life depend on the exact membrane grade and site exposure. Fire classification is product-specific; enclosed public spaces, transport hubs and other regulated venues require a current manufacturer test report for the proposed membrane and approval by the relevant authority. PTFE glass-fibre membrane is also available on request when its documented optical or fire properties suit the project.
PVC-coated polyester membranes are a practical choice for tensile structures where design flexibility and budget are governing criteria. They are available in a wide colour palette and selected grades can be printed or specified with controlled translucency. Structural, weathering and reaction-to-fire performance vary by manufacturer and membrane grade, so the approved data sheet and test certificates form part of the project specification.
Every tensile structure project is preceded by rigorous structural analysis. Our engineering team performs finite element analysis (FEA) of the complete membrane geometry, cable and edge systems, and steel substructure under the governing load combinations — wind pressure, wind suction, self-weight, and in specific locations, seismic loads per Saudi Building Code requirements. For large-span structures exceeding 25 m, we commission computational fluid dynamics (CFD) analysis to verify wind behaviour around complex geometries. The result is a structure that performs predictably under all design conditions and complies fully with SASO and SBC requirements for municipality permit submission.
