Security Checkpoint and Gate Shades in Saudi Arabia: Security checkpoint and gate shade structures are specialised canopies for vehicle inspection lanes, guard booths, entry control points and security gatehouse complexes at Saudi Arabia's industrial plants, government facilities, military compounds, residential communities, corporate campuses and airports. In Saudi Arabia's extreme climate, guard and checkpoint personnel work 24-hour rotations in all weather conditions; proper shade structures are a welfare necessity and an operational requirement. Shades Systems designs, fabricates and installs checkpoint shade structures for the full spectrum of Saudi Arabia's security-sensitive facilities.
Service image gallery

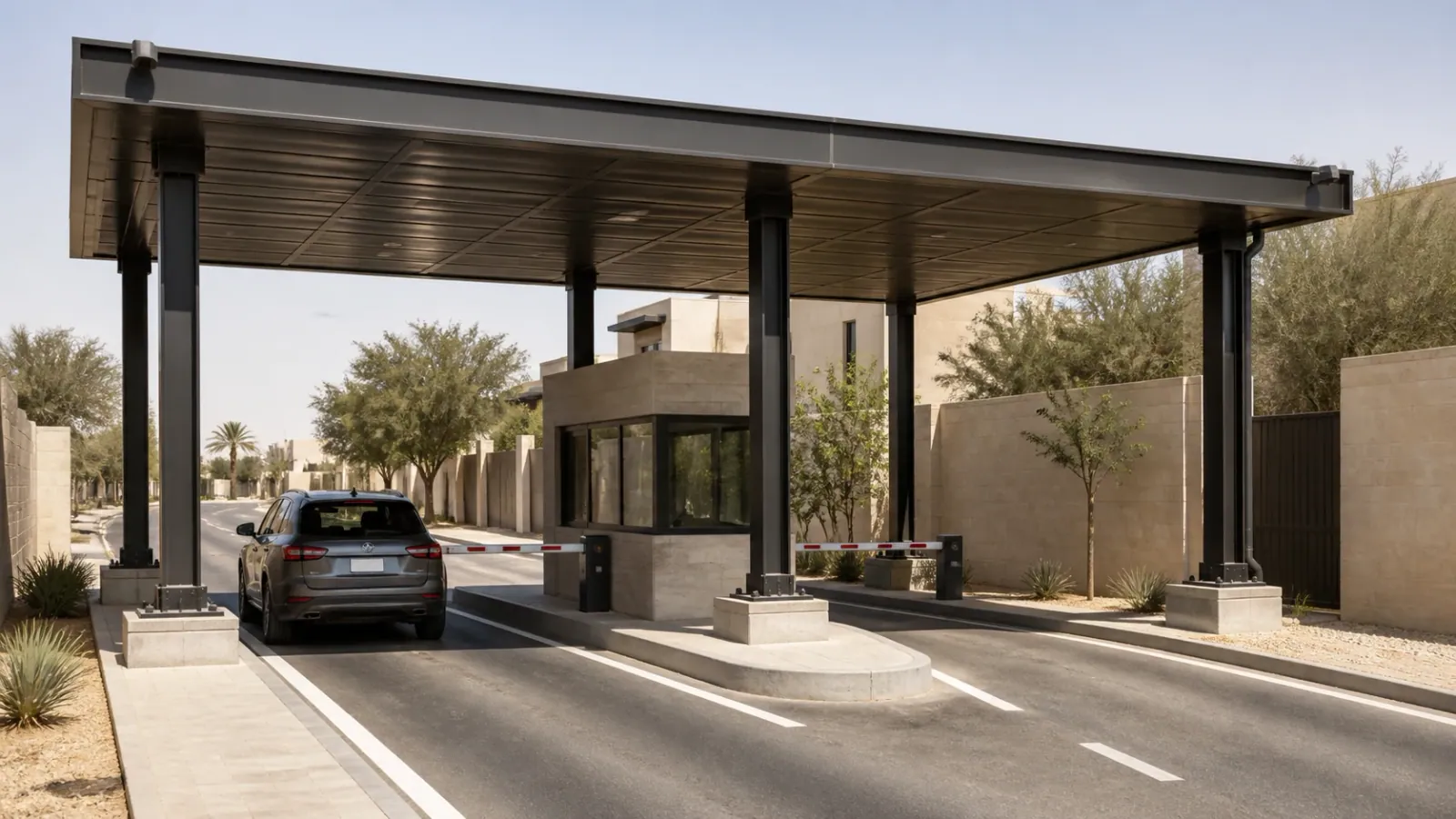

Vehicle checkpoint shade structures span the full width of one or more drive-through lanes — typically 3.5–5.0 m per lane — to create a covered, shaded environment for both the guard post and the vehicle being processed. Single-lane checkpoint canopies are the most common configuration for residential compound gates and corporate campus entrances; multi-lane structures spanning 10–20 m are used for industrial plant main gates (Aramco, SABIC, Ma'aden facilities) and government ministry compound entrances where multiple lanes operate simultaneously. Our cantilever and portal-frame structural systems achieve these clear spans without columns in the vehicle lane — eliminating obstruction to vehicle movement and the collision risk that mid-lane columns create.
All materials used in our checkpoint shade structures are selected for long service life and minimal maintenance in outdoor Saudi conditions. The primary structural frame is hot-dip galvanised mild steel — galvanised to a minimum 85 µm coating per ISO 1461, providing 30+ years of corrosion protection without repainting. A powder-coat topcoat in the client's corporate or facility colour completes the finish. Roof materials are specified based on the functional requirements: polycarbonate sheet (clear or tinted, fully waterproof) is standard for guard posts where the guard needs visibility of approaching vehicles from inside the booth; PVC/PVDF coated fabric provides full waterproofing and shade for wider lane coverage; HDPE shade cloth is used for temporary or budget checkpoint shade installations.
Our checkpoint shade solutions can be designed to cover existing prefabricated guard booths without modification — we survey the existing booth dimensions and design a canopy frame that spans over and beyond the booth footprint, anchored to reinforced concrete footings set outside the paved checkpoint area. For new-build checkpoint complexes, we work from the civil and layout drawings to design an integrated shade structure that is coordinated with the guardhouse architecture, boom barrier positions, CCTV mounting points and lighting fixtures. We accommodate induction loop sensors, anti-climb barriers and vehicle arresting systems within our structural design.
Speed of fabrication and installation is often critical for checkpoint shade projects — particularly retrofits to operational facilities where the checkpoint cannot be closed for extended periods. Our hot-dip galvanised steel frame is pre-fabricated in our Jeddah factory to precise site dimensions, minimising in-situ welding, cutting and adjustment. A single-lane checkpoint shade can typically be fabricated in 7–10 working days and erected on site in 1–2 days, limiting the operational disruption to the facility's access control. For multi-lane structures, we phase the installation to keep at least one lane operational throughout the works.
